2030 Professional Italy 9.0KW 3D air cooled spindle furniture making wood kitchen cabinet door flat ATC cnc router

  • Product Item: INM2030-ATC
  • Category: ATC CNC Router
  • ATC cnc router
  • cnc router machine with auto tool changer:
  • atc spindle
  • 3d cnc router
  • Product Manual:ATC CNC Router with Automatic Tool Changer Spindle is used for 2D/3D carving and cutting for woodworking, advertising, mold making and woodcrafts. Now the ATC CNC router for sale with cost price
  • SPECIFICATION

    Video for cnc router machine with auto tool changer


    Main Features of cnc router machine with auto tool changer:

    ♦  It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture      and large area and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so      on.
    ♦  Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely.
    ♦  Tool sensor enables the machine compensate the tolerance of the tool length.
    ♦  Vacuum working table with double cavities and Bakelite material with high absorption power.
    ♦  Imported control system, separated keyboard control, color LCD display add No.25 high accuracy square     linear guide rail and rack from Taiwan .

    Technical Parameters of  cnc router machine with auto tool changer:

    Working Area: 2000*3000*250mm
    Spindle Type: water cooling spindle
    Spindle Power: 9.0KW Chinese ATC
    Spindle Rotating Speed: 0-24000rpm
    Power (except spindle power): 5.8KW (include powers of: motors, drivers, inverters and so on)
    Power Supply: AC380/220v±10,  50 HZ
    Worktable: Vacuum Table and T-slot
    Driving Syestm: Japanses Yaskawa servo motors and drivers
    Transmission: X,Y :Gear rack, high accuracy square guide rail,
    Z: ball screw TBI and hiwin square guide rail
    Locating precision: <0.01mm
    Min Shaping Character: Character:2x2mm,letter:1x1mm
    Operating Temperature: 5°C-40°C
    Working Humidity: 30%-75%(without condensed water)
    Working Precision: ±0.03mm
    System Resolution: ±0.001mm
    Control Configuration: Syntec 6MA controller
    Data Transfer Interface: USB
    System Environment: Windows 7/8/10
    Spindle Cooling Way: Water cooling
    Inverter: Delta inverter
    Limited Switch: High sensitivity limited switches
    Graphic Format Supported: G code: *.u00, * mmg, * plt, *.nc
    Compatible Software: ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….
    Cutting Thickness: 0-40mm also (depends on different material)
    Z Tool Censor: yes
    Packing: Plywood case (veneer wood case for export)

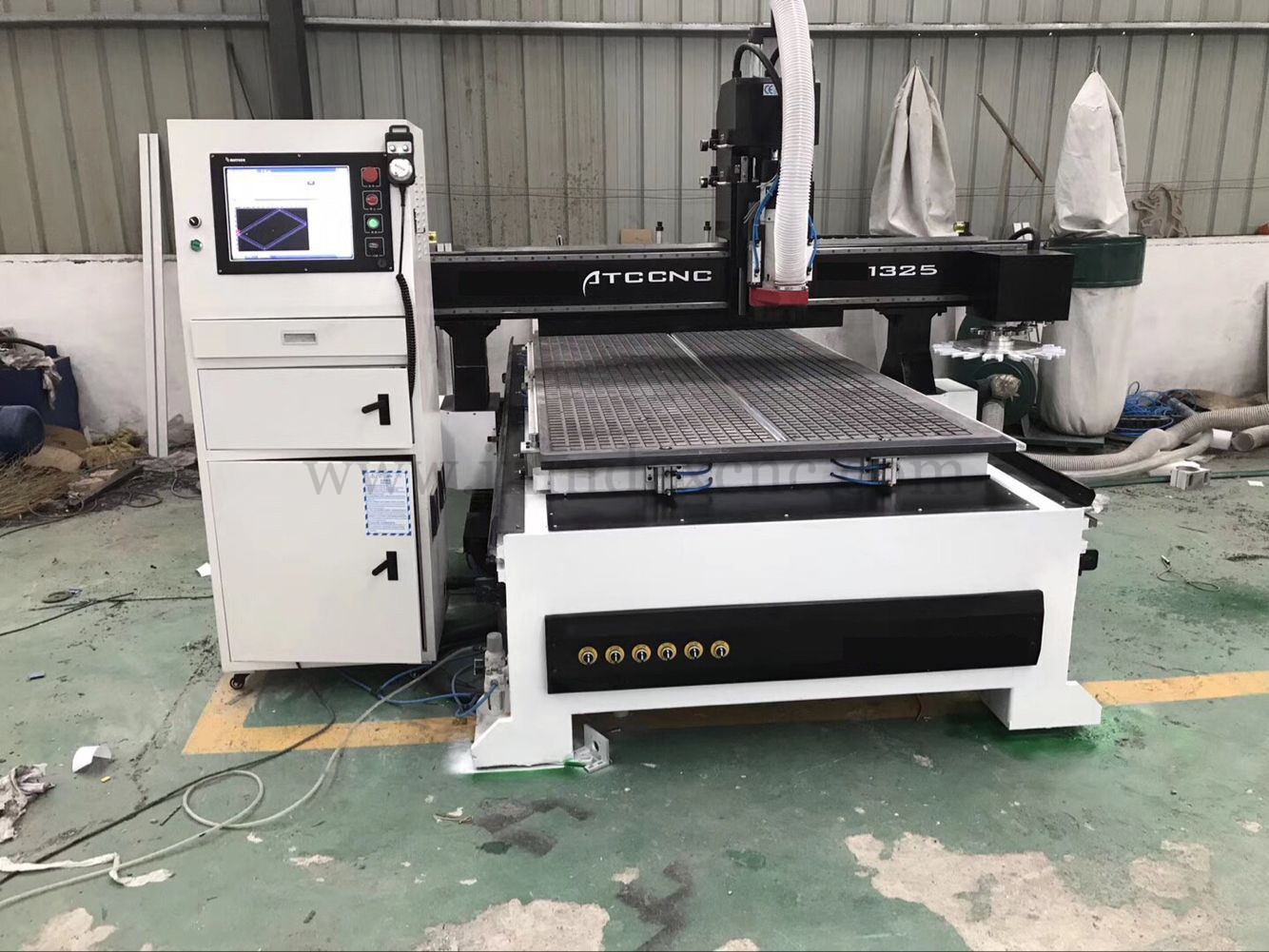

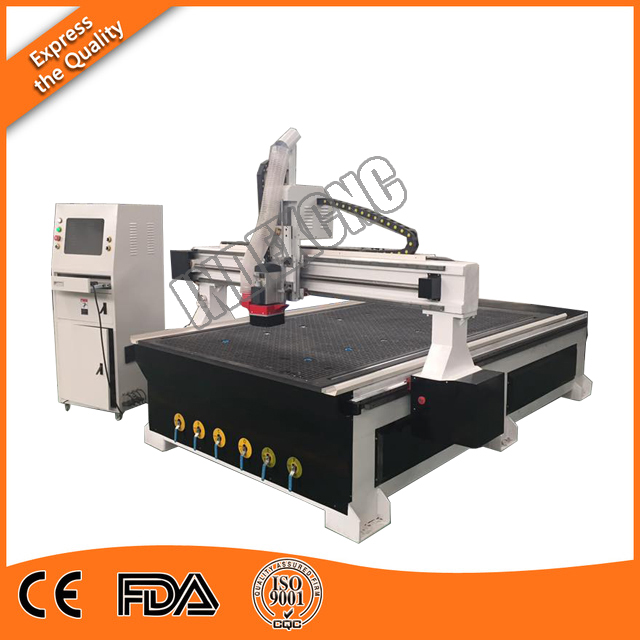

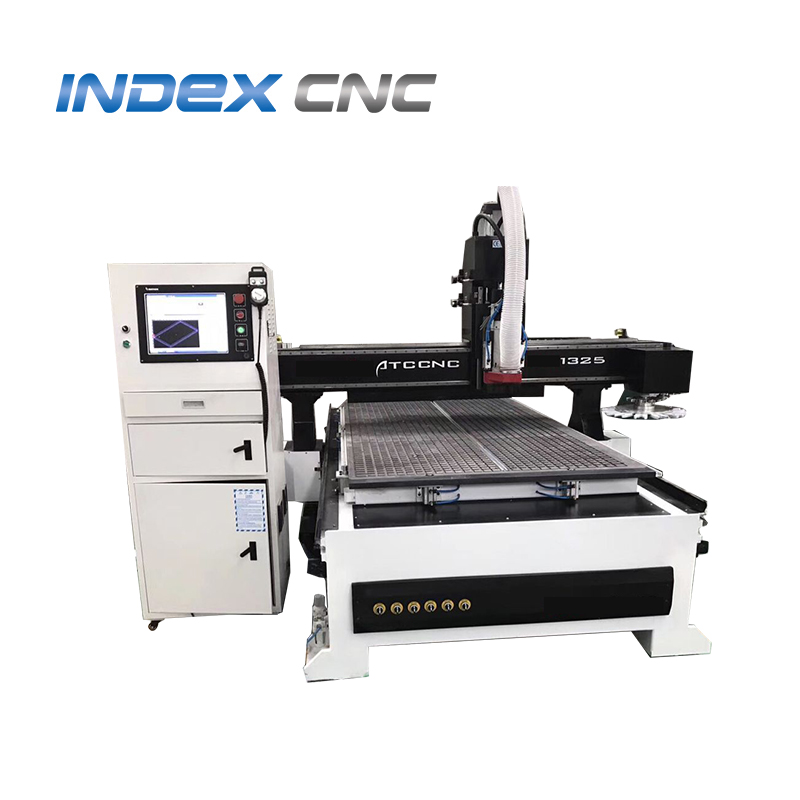

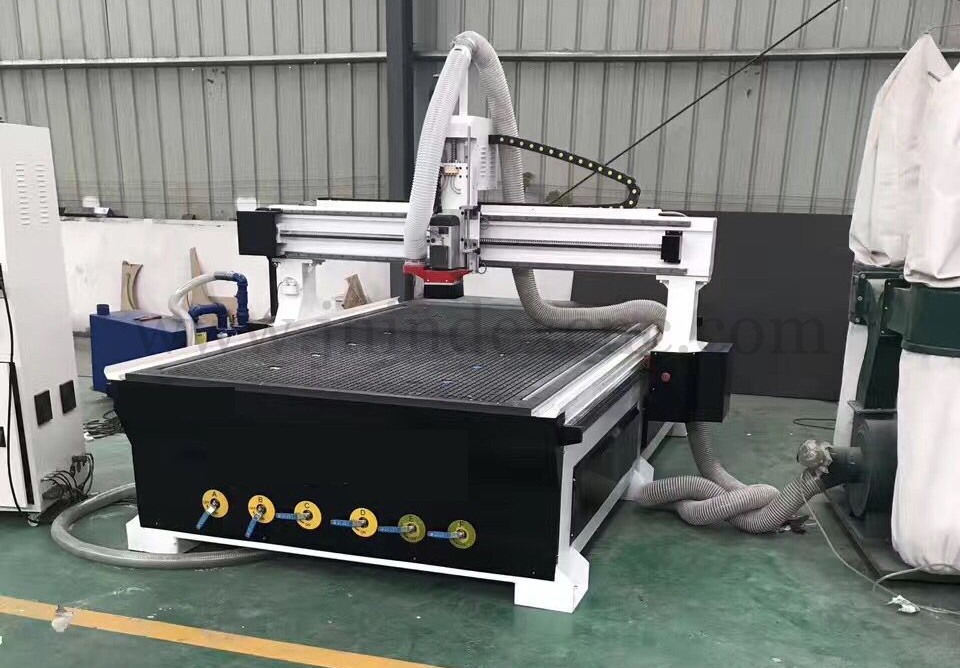

    Details of ATC CNC router

    Samples

    Applications:

    1. Wood furniture industry
    Doors; Cabinets; Tables; Chairs.
    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
    2. Advertising industry
    Signage; Logo; Badges; Display board; Meeting sign board; Billboard
    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
    3. Die industry
    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
    4. Artwork and Decoration
    wood crafts; gift box; jewelry box
    5. Others
    Relief sculpture and 3D engraving and Cylindrical object.


    FAQ:

    1. Delivery and Package:
    Generally we will take care of your machine packages well like picture show.
    Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.

    2. Guarantee:
    12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

    3. Technical support:
    1. Technical support by phone, email or MSN/Skype around the clock
    2. Friendly English version manual and operation video CD disk
    3. Engineer available to service machinery overseas

    4. After sales services:
    Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
    Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
