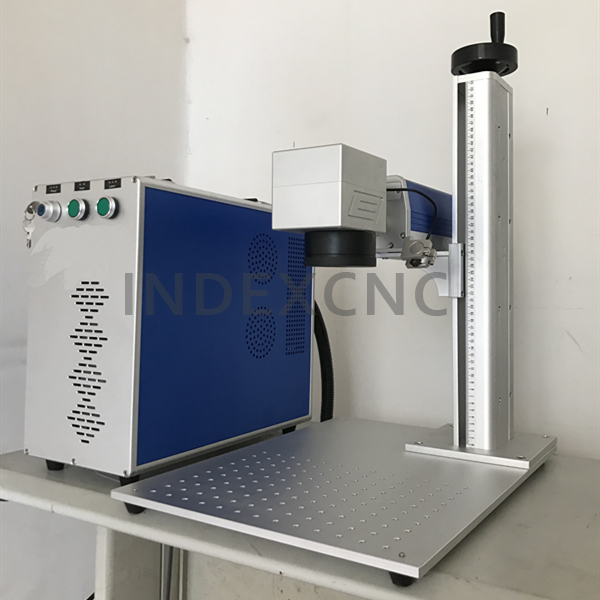

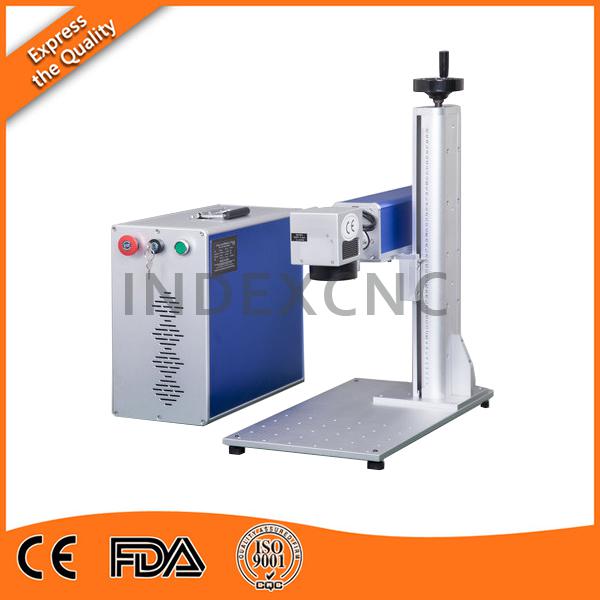

30w Fiber laser marking machine for stainless steel
Technical Parameters of fiber laser marking machine
|
No |
Item Name |
Parameter |
|
1 |
Model |
INJ30W |
|
2 |
Laser Power |
30W |
|
3 |
Laser wavelength |
1064nm |
|
4 |
Laser type |
Fiber Laser |
|
5 |
Laser beam quality |
M2:1.5 |
|
6 |
Repeat Frequency |
30KHz-60KHz |
|
7 |
Repeat Positioning Accuracy |
0.005mm |
|
8 |
Min linear width |
0.01mm |
|
9 |
Marking Depth |
0.01-0.5mm |
|
10 |
Standard Marking Area |
110×110mm |
|
11 |
Cooling |
Air cooling |
|
12 |
Rated Power Consumption |
500W |
|
13 |
Operating Voltage |
110V- 240V/50-60 Hz/15A |
|
14 |
Gross weight |
80 kg |
Samples of fiber laser marking machine
laser mark on iphone
fiber laser mark black color on stainless steel
Demo video of laser marking iphone case
