JPT 30W M1 M6 Mopa fiber laser marking machine color laser marking fiber

  • Product Item: 0002
  • Category: Laser marking machine
  • Mopa laser
  • color laser marking machine
  • JPT MOPA
  • MOPA LASER
  • Product Manual:JPT MOPA, MOPA FIBER LASER MARK, COLOR LASER MARK
  • SPECIFICATION

    JPT 30W M1 M6 Mopa fiber laser marking machine color laser marking fiber

    未标题-1

    Details of fiber laser marking machine

    Model INJ-30M
    Wave length of laser  1064nm
    Laser repetition frequency  20kHz~100kHz
    Laser power 30W
    Marking scope  50*50 /100*100 /200*200/300*300mm
    Laser sources Raycus  or IPG Fiber module
    Laser Head  Scanning head
    The minimum focus facula diameter  20μm
    Minimal character  0.01mm
    Marking speed ≤7000mm/s
    Repeated accuracy  0.0025mm
    Cooling ways  Force-air Cooling
    Power supply 220V/ 50Hz/2kVA
    Process Material  All kinds of metal and part of Non-metal Materials
    Support format  PLT, BMP, DXF, JPG, TIF, AI etc
    Package  Standard Crate for export

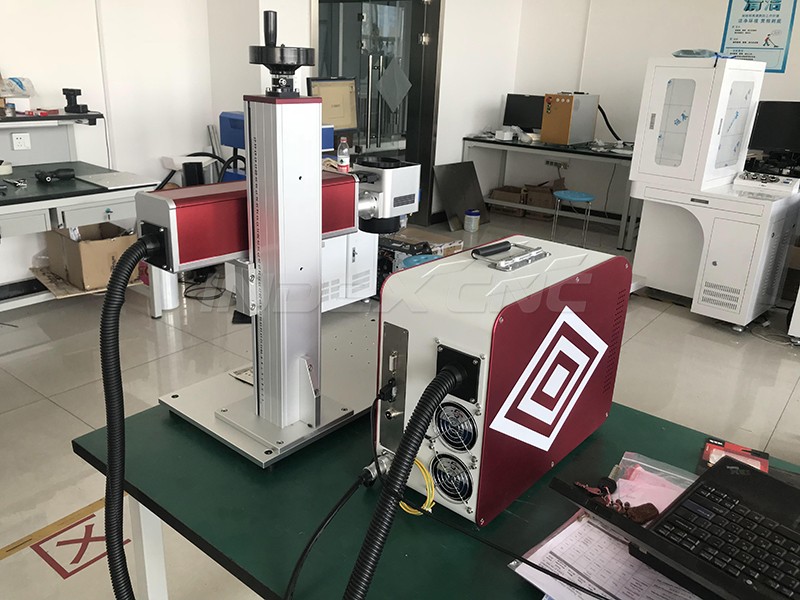

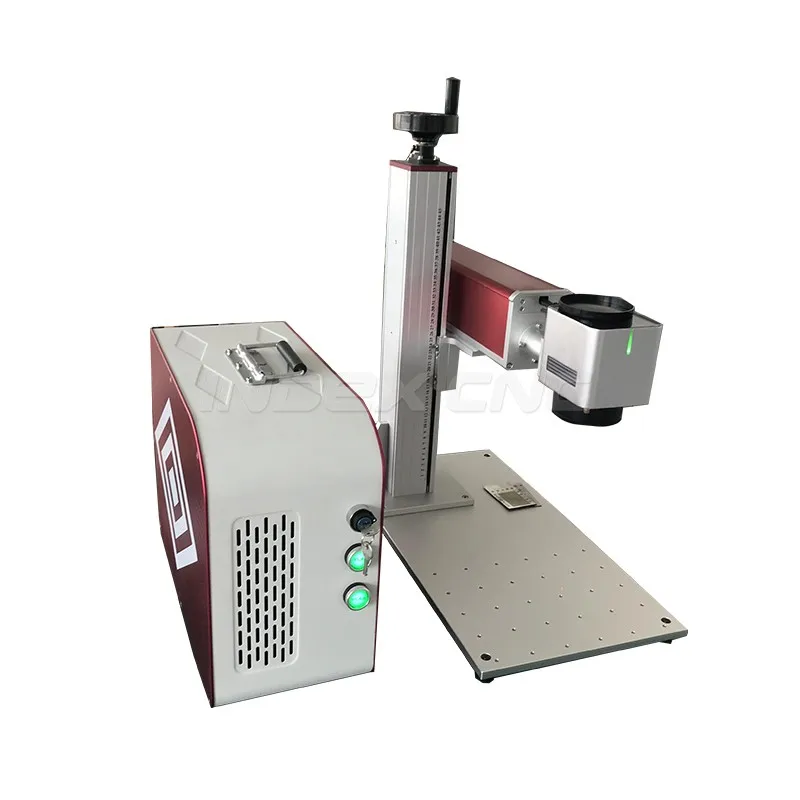

    Details of 30w Mopa fiber laer marking machine

    2019_06_10_17_07_img_7264

    2019_06_10_17_07_img_7262

    2019_06_10_17_06_img_72582019_06_10_17_06_img_7259

    Samples of 30w Mopa fiber laser marking machine

    Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.

    Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

    This  Portable desktop Fiber metal Laser  Marking Machine is very easy to use, small, light, moveable. It is your best choice.

    Applicable Material:

    All metal , some non-metal material marking such as nylon, ABS, PVC, PES

    Applicable Industry:

    Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

    未标题-15

    Warranty and service

    Two year for the machine

    1.Engineers available to service machinery overseas. Machine has been adjusted before delivery , operation disk was included.

    2.Two year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.

    3.Lifetime maintenance free of charge.Free training course at our plant. 24 hours on line service each day, free technical support.

    4.We will provide the consumable parts at an agency price when you need replacement.
