1325 Pneumatic System Three Spindles CNC Router for Wood Furniture

  • Product Item: INM1325-F2
  • Category: Wood CNC Router
  • Three Spindles CNC Router
  • CNC ROUTER for furniture
  • CNC ROUTER
  • Product Manual:Three spindles cnc router, cnc router for furniture
  • SPECIFICATION

    1325 Pneumatic System Three Spindles CNC Router for Wood Furniture

    未标题-1

    Product Description



    Professional furniture factory cabinet or closet making machine--pneumatic system 4 spindles cnc router. In some degree, it can help you finish many

    works by different tools in one time automatically, working efficiency is much higher. its function is very similar to auto tool changing atc. But,

    Cost for pneumatic system multi spindles cnc is much more economic than ATC, so it is good model to choose if you are in furniture industry.

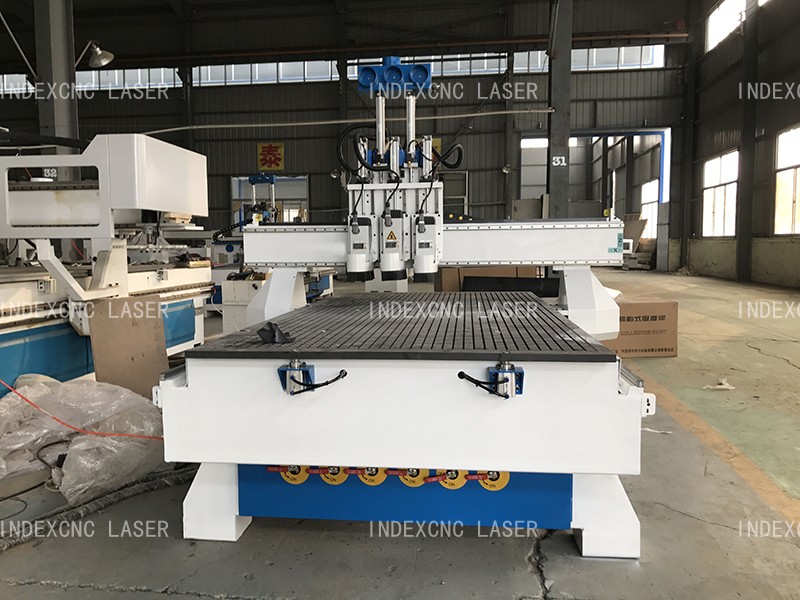

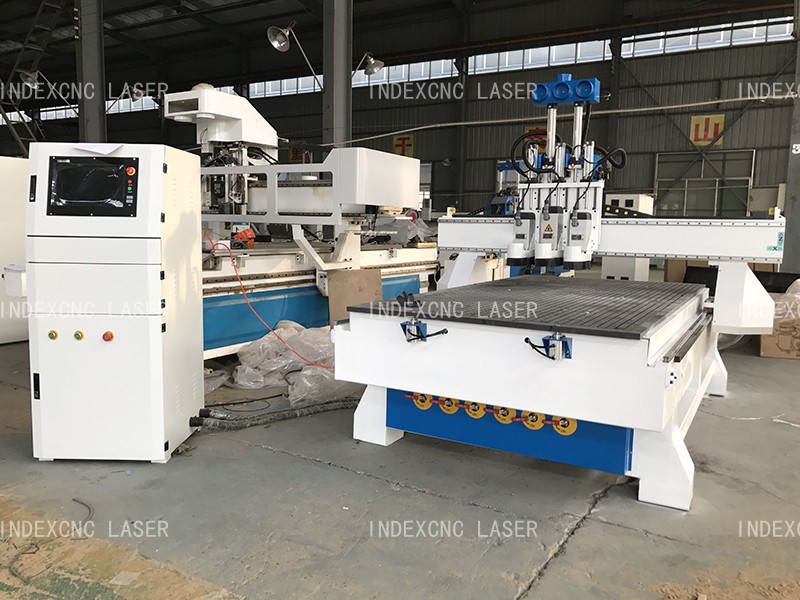

     Details of multi heads wood cnc router machine

     qq图片20161219090333qq图片20161219090336


    Performance Parameter of multi heads wood cnc router machine



    Number Description  Parameter
    1 X,Y,Z Working Area 1300mmx2500mmx250mm
    2 Table Size 1330mm×3040mm
    3 X,Y,Z Traveling Positioning Accuracy ±0.03/300
    4 X,Y,Z Repositioning Accuracy ±0.03mm
    5 Table Surface Vacuum and  T-slot Combined (Option: T-slot table)
    6 Frame Welded structure
    7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
    8 Z Structure Hiwin Rail Linear Bearings and Ball Screw
    9 Max. Power Consumption 4.5kw (Without Spindle)
    10 Max. Rapid Travel Rate 45000mm/min
    11 Max. Working Speed 30000mm/min
    12 Spindle Power 4.5kw air cooling spindle*3
    13 Spindle Speed 0-24000RPM
    14 Drive Motors chinese leadshine servo motor
    15 Working Voltage AC 380V/50/60Hz,3PH
    16 Command Language G Code
    17 Operating System Shanlong Control System
    18 Computer Interface Ethernet, CF Card
    19 Flash Memory 512M(U Disk)
    20 Collet ER32
    21 X,Y Resolution <0.03mm
    22 Software Compatibility Type3/UcancameV9 software   (Option: Artcam software)
    23 Running Environment  Temperature 0 - 45 Centigrade
    24 Relative Humidity 30% - 75%
    25 Packing Size 3500X2250X2200mm
    26 N.W. 1800KG
    27 G.W. 2000KG


    Please kindly note the above configuration is standard configuration.

    Custom Made/ODM/OEM

     is available. Just tell us your requirement, we will build the machine accordingly.

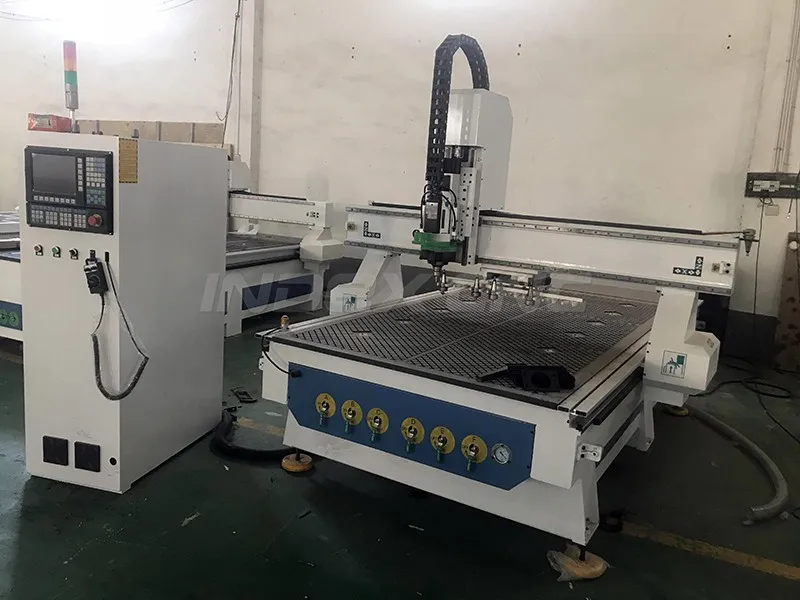

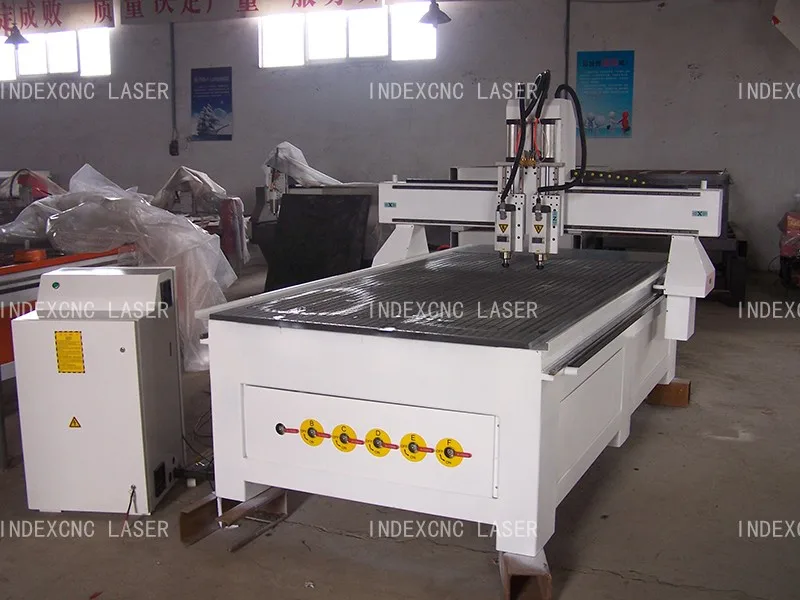

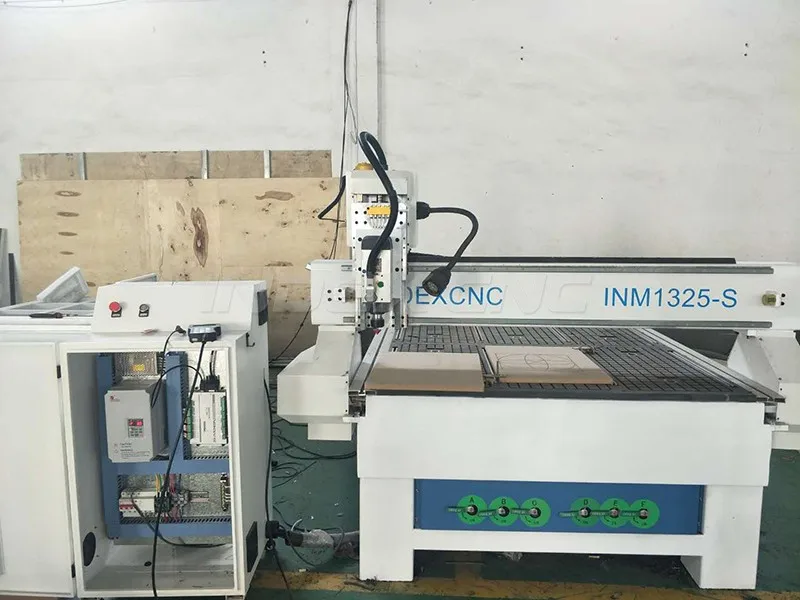

    Other model of WOODWORKING CNC machine

    100_2673


    2019_06_11_10_39_img_7318img_7376

    Application of multi heads wood cnc router machine

    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Advertising industry

    Signage; Logo; Badges; Display board; Meeting sign board; Billboard

    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3. Die industry

    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

    4. Artwork and Decoration

    wood crafts; gift box; jewelry box

    5. Others

    Relief sculpture and 3D engraving and Cylindrical object.
