Intelligent pneumatic multi heads cnc router, kitchen cabinet door marking cnc router

  • Product Item: INM1325-4T
  • Category: CNC Router
  • kitchen cabinet door marking cnc router
  • pneumatic multi heads cnc router
  • multi heads cnc router,
  • pneumatic heads cnc router
  • Product Manual:Kitchen cabinets door making CNC router is suitable for standard or bespoke production such as Wooden door, cabinet, panel furniture, closet, etc.
  • SPECIFICATION

    Intelligent pneumatic multi heads cnc router, kitchen cabinet door marking cnc router


    Machine highlights

    1. X, Y, Z axis use imported ball bearing guide screws. It’s precise and fast. Even the letters of

    1mm can be clearly discernible. The small-power machine uses large-power main axis, it’s an

    ideal product for manufacturing labels, construction models and moulds in batches.

    2. High speed calculation It uses DSP  control system and FPGA technology

    which can continually and smoothly run the three axes with high speed. It has the ability of

    calculation of 5000 vector/s.

    3. Steady data transmission .The data transmission uses the technology of ISA/IP DNC/IP straight

    association, which can associate the machine without interruption, and it has no limitation of the amount of the document.

    4. Double-nut guide screw .It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically.

    Coordinated with the imported shaft coupling, it can realize precise control. It uses straight

    line guide rail (cylinder or square), which can ensure the working life.

    5. Large internal memory capacity of 32M is able to store 30 processing files

    simultaneously and open and process any of them.

    6. Connection with the computer via USB interface enables data to be transmitted in a second,

    supports hot plug and play, no driver installation required(Window98/NT/2000/XP)

    ===============================================================

    Technical parameters

    1

    X,Y,Z Working Area

    1300x2500x300mm

    2

    X,Y,Z Traveling Positioning Accuracy

    ±0.03/300mm

    3

    X,Y,Z Repositioning Accuracy

    ±0.03mm

    4

    Table Surface

    T-slot working table/Vacuum Table

    5

    X, Y Structure

    helical/Oblick rack gear,

    6

    Z Structure

    Taiwan Hiwin Rail

    and Taiwan TBI Ball Screw

    7

    Max. Power Consumption

    (Without Spindle)  2.5kw~3Kw

    8

    Max. Rapid Travel Rate

    33000mm/min

    9

    Max. Working Speed

    25000mm/min

    10

    Spindle Power

    HSD Air cooled spindle/Water cooled spindle for options

    11

    Spindle Speed

    0-18000RPM/0-24000RPM

    12

    Drive Motors

    Stepper Motor /Servo motor

    13

    Working Voltage

    AC380V/50/60Hz,3PH (Option: 220V)

    14

    Command Language

    G Code

    15

    Operating System

    NCStudio / DSP/ MACH3

    16

    Computer Interface

    USB

    17

    Flash Memory

    512M(U Disk)

    18

    Collet

    ER25

    19

    X,Y Resolution

    <0.01mm

    20

    Software Compatibility

    Artcam Software

    21

    Running Environment  Temperature

    0 - 45 Centigrade

    22

    Relative Humidity

    30% - 75%

    ================================================================

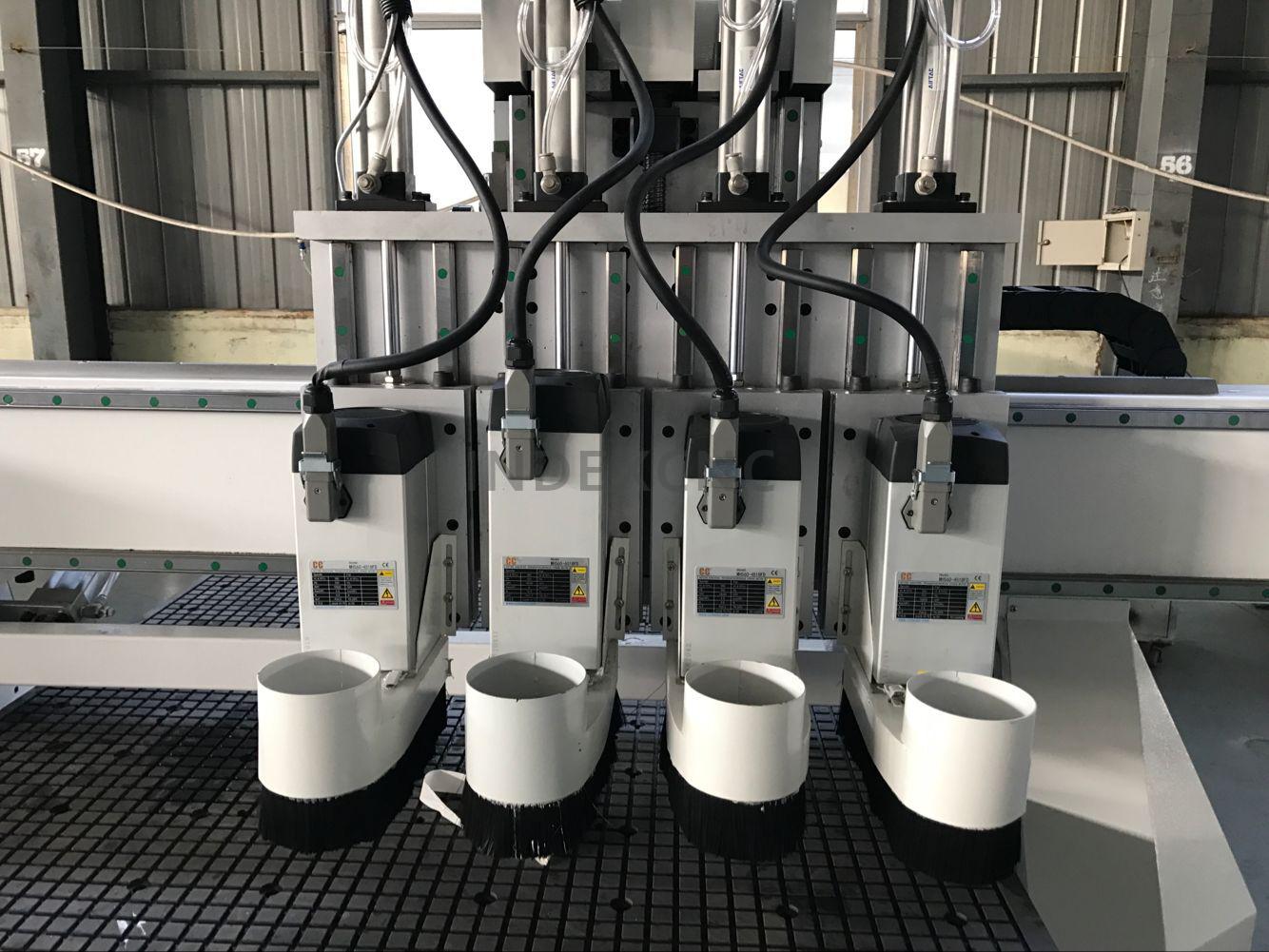

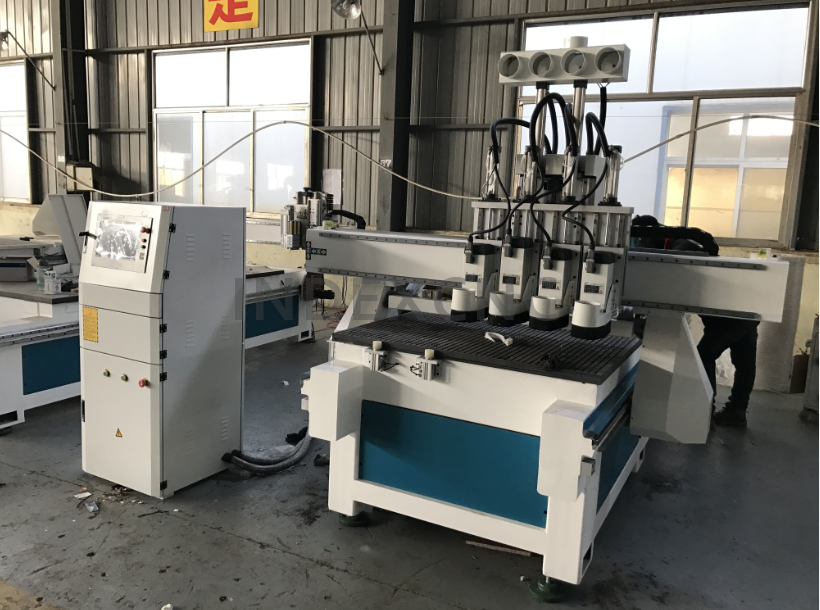

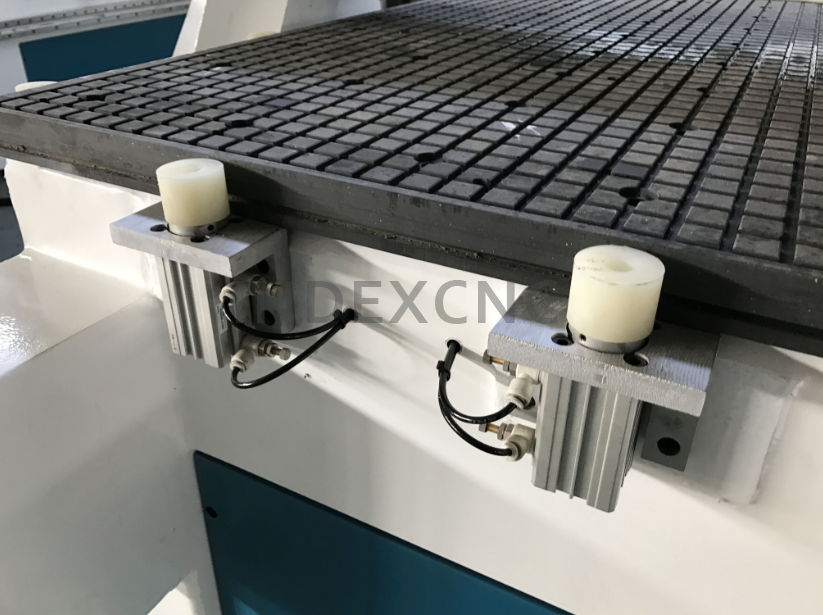

    Details of multi heads cnc router

    mutli heads cnc router

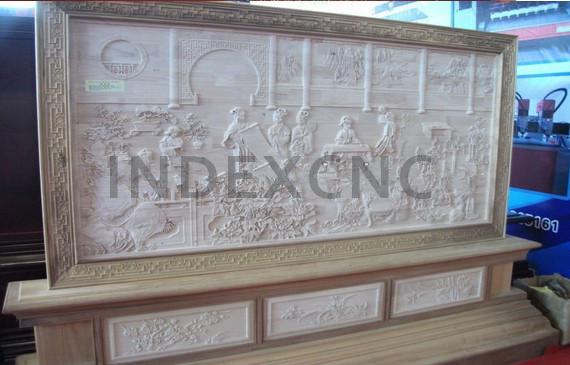

    Applications and Samples

    1, woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing,video game cabinets and panels, computer table and Plate furniture auxiliary processing.

    2, the advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
    3, die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
    4, other industries: A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.


    Our service

    Training
    We offer free training in our factory, welcome foreign friend come here to study the machine.
    engineer oversea service is aviliable if you like, and Engineers will be trained user programming,
    peration, processing and routine maintenance.
    We will offer Multi-language software and operation CD, Detailed User Manual together with machine for your reference.
    On line service
    18 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
    Guarantee time
    2 year guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine.
    lifetime maintenance, charge the appropriate fee and the cost of replacement parts

    ====================================================================

    Payment terms

    A:T/T: 30% T/T deposite,70% before shippment.This is the most convinent payment terms

    for international trade.

    B:Alibaba trade Assurance payment.It is a third party payment terms.

    1) You pay money to alibaba.

    2) We prepare your machine production.

    3) After your production,we would tell you timely,then you click the button"agree to ship".

    4) We ship it.

    5) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money

    release to our company.

    6) After your agreement,Alibaba would pay your money to us.

    C:Western Union: only small order

    D:Paypal

    E:L/C

    F:Cash
