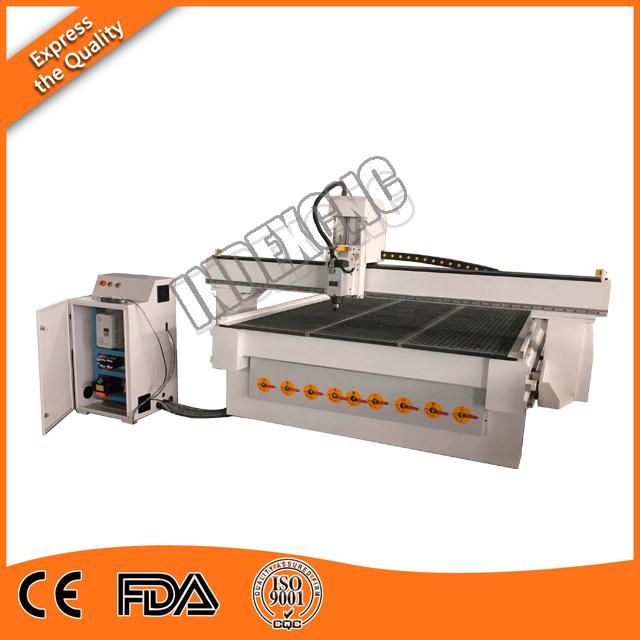

large working size cnc router 2030 for wood,MDF,plywood

  • Product Item: INM2030
  • Category: CNC Router
  • cnc router 2030
  • large working size cnc router
  • 2030 CNc router
  • large cnc router
  • Product Manual:large working size cnc router 2030 for wood,MDF,plywood

    large working size cnc router 2030 for wood,MDF,plywood

    Large working size cnc router 2030 for wood

    1.vacuum adsorption system

    2.water cooling spindle 5.5KW

    3.stepper motors and drivers

    4.rack gear and pinion transmission

    Product Description


    1. Whole machine is welded with seamless steel structure,the stability is excellent, not easy

    to be deformed.

    2. Domestic air cooling spindle,Italy technology

    3. Three axes adopt imported high precision Taiwan square orbit;X and Y axes adopt rack and

    pinion transmission,fast working,high efficiency and low cost;Z axis adopts Taiwan ball screw,with

    high precision and long life time.

    4. Well compatibility:CAD/CAM designing software e.g.

    Type3/Artcam/Castmate/Wentai etc.

    5. Has the function of re-carving after break point and power failure.

    6. Has the function of forecasting process time.

    7. Has dust-collect function. It will clean up the carving residuum and make the operations tidier

    and more convenient.

    8. Auto oiling system.

    9. China domestic no oil vacuum pump, also can equipped with different vacuum pumps

    according to customers requirements

    10. Dust collection system

    Technical Parameter:



    X.Y working area


    Z working area




    X,Y structure

    Rack and pinion transmission

    Z structure

    Taiwan ball screw

    Max speed


    Spindle power


    Spindle rotating speed


    Cooling mode

    water cooling

    Working voltage

    AC380V/50/60 Hz ,3PH

    Drive Motor

    stepper motors and drivers


    G code*.u00*.mmg*plt

    Operating system

    NC Studio/DSP



    Flash Memory


    Diameter of cutter



    By suction

    Net weight

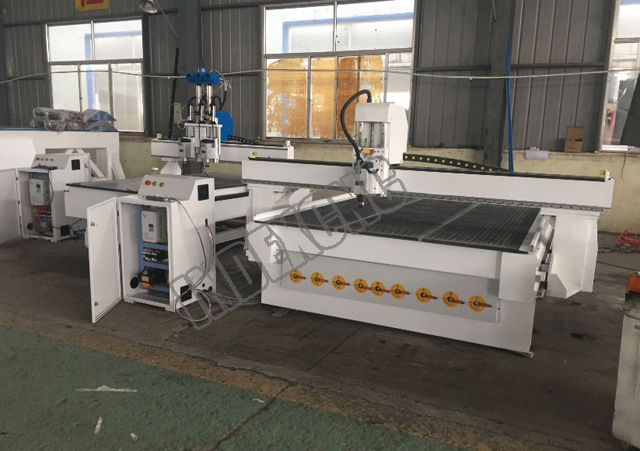

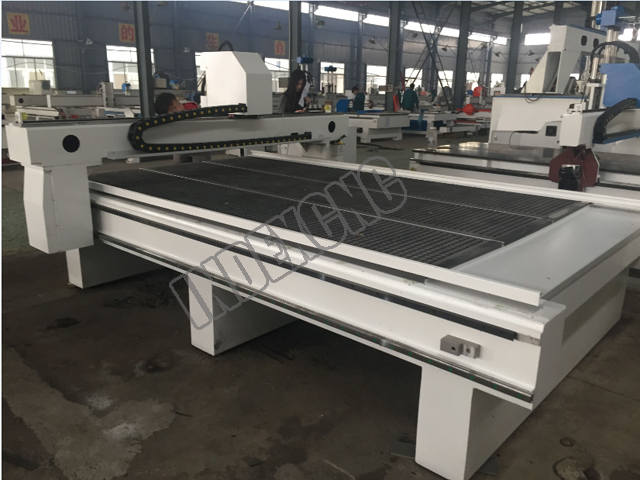

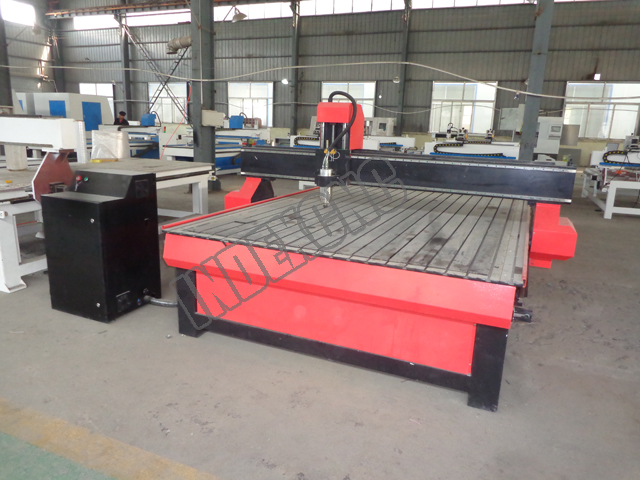

    Machine details of 2030 CNC router

    Applicable industries:

    Wood processing:processing of various furniture such as door,window,cabinet,

    craft wood door,screen and so on.

    Advertisement:engraving and cutting various labels and number plate.

    Art craft:engraving characters of any languages and graphics on gifts and souvenirs.

    Applicable materials:

    Wood,aluminum board,plastic,density board,wave board,PVC,acrylic,crystal,light

    marble and other nonmetal materals and light metal materials.

    Payment terms
    We support Trade Assurance in Alibaba and you can pay it by your credit card. It is very convenient.
    We also accept T/T !
    You can pay 30% in advance, 70% before delivery.
    The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
    After you agree, please finish the balance.Finally.we arrange the delivery.
    Our Services

    (1) Pre-sale services:

    * Provide the free consultation of the equipment .

    * Provide the standard device and the flow chart.

    * According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.

    * Welcome to visit our factory.

    (2)Services during the sales:

    * Inspect the machine before leaving the factory.

    * Oversea install and debug the equipment

    * Train the first-line operator.

    (3)After sale services:

    * 24 hours online service.

    * Provide the VIDEO with Install and debug the equipment.

    * Provide technical exchanging.

    Service In Life-Time: No matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.
